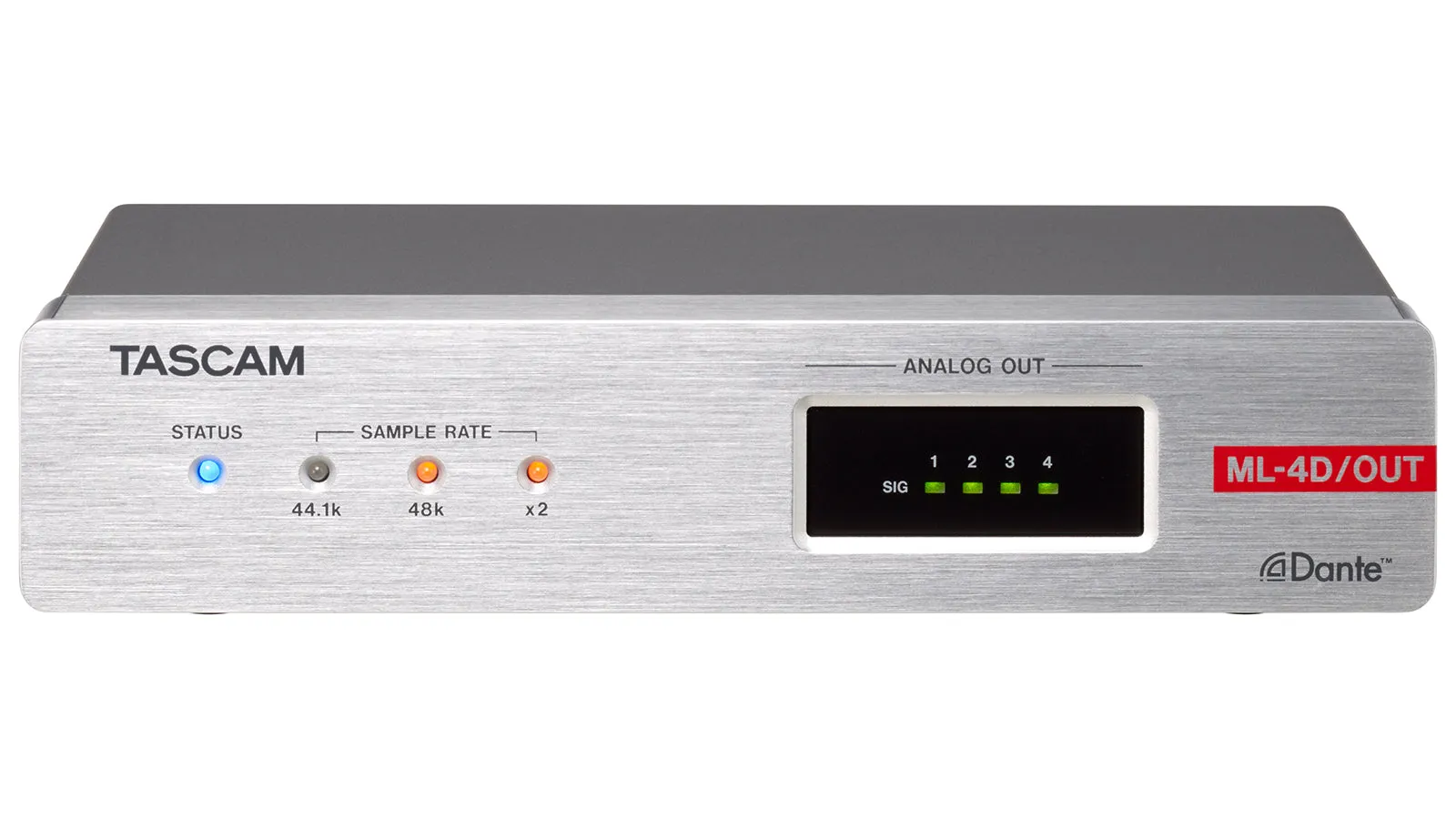

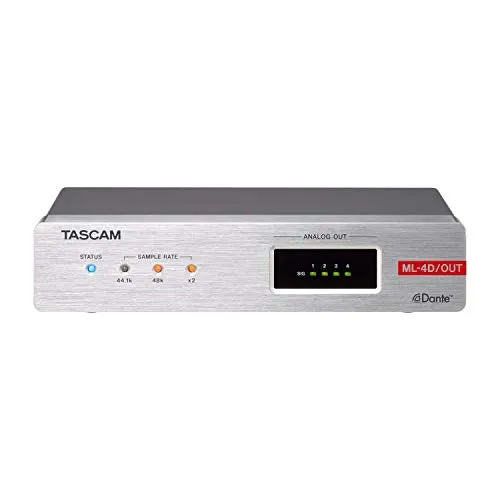

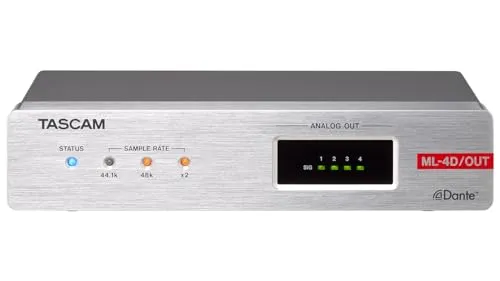

Name: Tascam ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer
SKU: 361893

Tascam ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer

$ 40.43

$ 0.00

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The ML-4D/OUT-E is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-E supports up to 96kHz/24bit and uses Euroblock connectors for analog line output.

The ML-4D/OUT-E not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.

Key Features:

4 line output
4 Dante input/output
Supports PoE (Power over Ethernet)
Up to 24bit/96kHz
Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
Compatible with Dante Domain Manager and Dante AES67 Mode
Flexible scene preset function allows to work in different area situations (Up to 50 presets)
Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
2 types of user control software available for Windows/Mac/iOS/Android devices:

For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For end-users: simple app design for only the necessary functions such as area volume settings, etc.
